SCHEDA PC VIDEOSORVEGLIANZA DVR 4 CH VIDEO SYSTEM 80504
SCHEDA PC VIDEOSORVEGLIANZA DVR 4 CH VIDEO SYSTEM 80504










Condividi
Che BELLO USARE L'ASSISTENZA IN LINEA, Ti rispondono subito, assistono i tuoi acquisti, ti informano su eventuali ritardi, su come effettuare un reso, gestire una tua esigenze, addirittura puoi chiederci di chiamarti qualora ci siano problemi specifici...PERCHE' NON USARE LA CHAT???. USALAAAA!!!





Novità
Comunicazioni Tutti gli aggiornamenti di questo prodotto.SCHEDA PC VIDEOSORVEGLIANZA DVR 4 CH VIDEO SYSTEM 80504

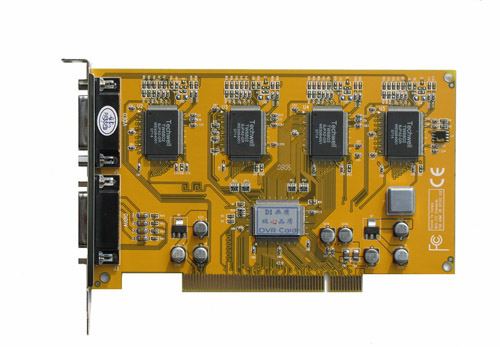

Scheda dvr per PC 4 canali video 2 canali audio adatta per la videosorveglianza,  alloggia in un normale slot PCI, dotata d'immagine di buona qualità, senza sbavature.Buona compatibilità con le schede madri:  945G, scheda video (ATI, NVIDIA, Tessera integrata, chipset e VIA) e della CPU tra cui AMD
Adotta vari tipi di risoluzione dello schermo widescreen incluso.
Network: Consente il monitoraggio remoto dalla rete, la riproduzione, allarme e DNS.
Rilevamento di movimento:

Ad ogni canale può essere impostato 4 rilevazioni.

1 Compressione: H.264
2 4 Channel CIF Video and 2 Channel Audio
3 Video Preview D1 (704*576PAL)
4 Dimensioni della scheda: 12,5 x 9 cm

Caratteristiche tecniche:

Resource
200fp
Video Input
4 Channel
Video Format
PAL and NTSC
Video Compression Code Rate
45K∼2Mbps
Video Compressing Standard
H.264 Baseline Profile
Preview Frame Rate
HALFD1 and CIF
Compression Resolution
CIF
Audio Input
2Channel
Video Preview
DirectDraw
Alarm Input
32 Channel
Power Consumption
<4W
Operating System
Windows2000/XP


Caratteristiche tecniche in lingua inglese prese dal manuale CD:
  • Running on a Windows 2000 or Windows XP platform, adopting state-of-the-art video and audio compression technique and involving few CPU resources, with the ability to ensure the long-term stability of the system;
  • Simple, properly arranged and user-friendly interface;
  • Full and practical functionalities ,without excessive utilities, abilities to satisfy users with monitor supervision requirements, and high system stability;
  •  Full capability of windows operation mode and e-map operator mode; and compatibility between e-map mode and window operation mode, without any impact to the connection of network users and reading of video information in any mode;
  • Ability to define maps by user as required in case of e-map mode;
  • Ability to support 4 types of video recording modes: continuous video recording, definite-time video recording, motion detection video recording, and alarming video recording; and ability of individual setup of each of the channel;
  • Ability to support image shading;
  • Ability to support full real time of max. 64 channels of images, with a frame rate for each channel of 25 frames per second (for PAL system) and 30 frames per second (for NTSC system);
  • Ability to support 1, 4, 9, 16, 25 and 36 channels of multiframe split display , and group switchover of images;
  • Image resolution ratio:CIF:352*288,HD1:704*288,D1:704x576;
  • Ability to support alarming pre-recording and time-delay recording (time adjustable), recording the complete process of alarming video recording;
  • No frame loss in switchover between files, completeness of video information ensured;
  • Ability to support storage space of multiple hard disks, multi partition and automatic-detection of hard disk;
  • Capacity of hard disk for recording: depending on a user adjustable code rate of video recording (i.e., compression ratio) , commonly code rate under compressed format of MPEG-4/H.264 is 60-225 Mbit/hour/channel, generally the setting value is 100 Mbit/hour/channel;
  • Ability to superimpose such information as time and monitor supervision location to image frame;

  • Ability to concurrently perform video recording, surveillance, playback and remote surveillance;
  • Ability to support control of user authority, administrator can set up various operations for user(s);
  • Functionality of software dongle, allowing the system to conduct self-diagnostics and self-protection, achieving unmanned;
  • Ability to support voice talkback, and achieve voice talkback between multi-client-sides;
  • Ability to support control operation of video camera PTZ (pivoting, translating, zooming and focusing), and decoder protocol being expandable through installation of driver;
  • Ability to support door lock  control, and control protocol is expandable through installing driver;
  • Ability to support alarming linkage, alarm unit control protocol can be expanded through installing driver;
  • Functionality of built-in HTTP network server, supporting network browsing (IE browsing) , providing plug-in units running on Internet. supporting mapping of dynamic state IP address to static state IP address or website;
  • Providing common player and specialized player;
  • Distinguishing features: e-map functionality
  • Network talkback functionality
   La confezione contiene:
  • Nr. 1 Scheda DVR
  • Nr. Cavo collegamento
  • Nr. 1 CD Driver + manuale in lingua inglese
